Starlink and OneWeb Coverage Map and 3D Satellite Tracker

Starlink and OneWeb both operate large constellations in low Earth orbit, but where you can actually get service depends on more than the satellites overhead. Our interactive 3D tracker shows how the two constellations are arranged and how their satellites move around the planet, while this page explains what coverage means in practice, how it differs from licensed availability, and how GCCSAT checks a specific site or route before you commit.

Use the tracker to understand orbital geometry rather than to plan a link. For an availability check at your exact location or along a vessel route, contact our engineers. Satellite internet services are not sold within the UAE, so our assessments cover sites, routes and operating areas in other countries where these networks may be licensed.

At a glance

Coverage is not availability

A satellite passing overhead does not mean service is permitted. Each country decides whether Starlink or OneWeb may operate, and rules at sea differ inside territorial waters.

Different orbits, different reach

OneWeb flies in near-polar orbits at about 1,200 km, while Starlink uses several lower shells at different inclinations, which shapes how each one covers high latitudes.

Click any satellite

Select a satellite in the tracker to see its name, NORAD catalog number, altitude and inclination band, and to draw its orbital path around the globe.

Site checks by engineers

Our team reviews licensing, sky view, terminal options and backup links for your exact location or route, then recommends Starlink, OneWeb, VSAT or a combination.

How to Use the 3D Starlink and OneWeb Tracker

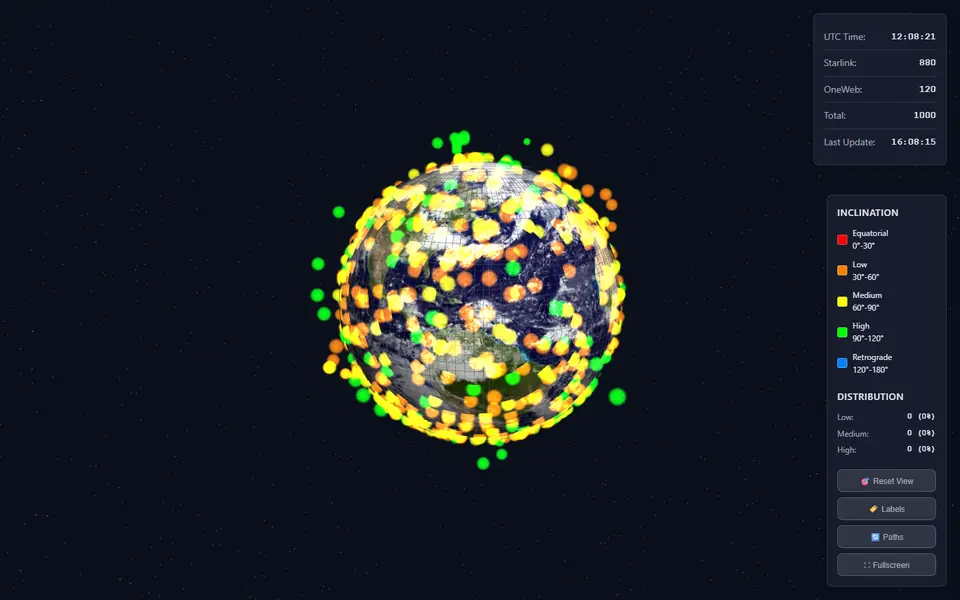

Press the launch button to load the tracker; it only starts when requested, so the page stays light on mobile and metered connections. Each point is a satellite whose position is calculated in your browser from published two-line element sets, and colors indicate orbital inclination bands, from equatorial to retrograde. The panel at the top right shows UTC time and how many satellites from each constellation are drawn. The tracker plots a representative sample of each constellation, so dense or sparse areas on the globe do not indicate better or worse service.

  • Drag to rotate the globe; scroll or pinch to zoom
  • Click a satellite for its details and orbit path
  • Press R to reset the view, F for full screen, Esc to close details

Reading Starlink Coverage: Shells, Inclinations and the Official Map

Starlink satellites orbit in several shells at different inclinations. Most fly in mid-inclination shells that concentrate capacity over the populated middle latitudes, while higher-inclination and polar shells extend reach toward the poles. On the tracker, most Starlink satellites appear orange, in the 30 to 60 degree band, and the polar shells appear green. For service, Starlink's official availability map is the reference, and business availability can differ from the consumer view. At sea, international waters are covered on suitable plans, but territorial waters depend on licensing.

Reading OneWeb Coverage: Polar Orbits and Gateway Approvals

OneWeb satellites circle the Earth in near-polar planes at about 1,200 km, so their tracks converge over the Arctic and Antarctic and spread apart toward the equator. In the tracker they fall in the yellow band for 60 to 90 degree inclinations. This geometry gives the constellation reach at very high latitudes. However, OneWeb relays traffic through ground gateways and is sold through partners, so commercial service in a given country depends on gateway coverage and national approval. Eutelsat and its partners confirm availability country by country, and we check it for your specific location.

From Map to Working Link: How GCCSAT Assesses Your Site

A map can confirm that satellites pass overhead; it cannot confirm that a terminal will work on your roof or mast. Our assessment combines licensing and service availability for the country or route, a sky-view check for buildings, terrain, masts and cranes, terminal selection for fixed, vehicle or maritime use, and a backup plan using VSAT, cellular or a second LEO network. For vessels we review the full voyage pattern, including port calls and territorial waters. The result is a recommendation you can act on, with hardware, service and support from a single provider.

Frequently Asked Questions

Does the tracker show exact real-time satellite positions?

The tracker calculates positions in your browser from published orbital element sets and animates them continuously, which is ideal for understanding how the constellations are arranged. Element sets age and constellations change, so positions are approximate and only a sample is shown. It should not be used for link planning or to predict passes.

Where can I see the official Starlink coverage map?

Starlink publishes an official availability map on its website, showing by country and area where service can be ordered, where it is coming soon and where capacity is limited. Business, mobility and maritime availability can differ from the consumer view, so we confirm what applies to your account and location.

Does OneWeb have a coverage map?

OneWeb's satellites cover the whole globe, including the polar regions, but commercial availability is confirmed country by country by Eutelsat and its partners, because each market needs regulatory approval and gateway support. As an authorized Eutelsat OneWeb partner, GCCSAT can confirm whether service is active for your site or route.

Why does the tracker show satellites over countries without service?

Satellites orbit continuously and pass over every country along their tracks, but they only provide service where the operator holds a license and has the required ground infrastructure. Over unlicensed countries, terminals are simply not activated. The UAE is one example: satellite internet services are not sold there, so our assessments cover other locations.

Which is better at high latitudes, Starlink or OneWeb?

Both reach high latitudes, OneWeb through its near-polar orbits and Starlink through its polar shells. The better choice depends on the services licensed for your area, terminal suitability for your platform and the performance you need. For critical operations we often recommend two networks, such as both LEO services or one LEO network plus VSAT.

Talk to a GCCSAT engineer

Tell us where you operate and what you need to connect. We reply within 24 hours with a recommended design.
