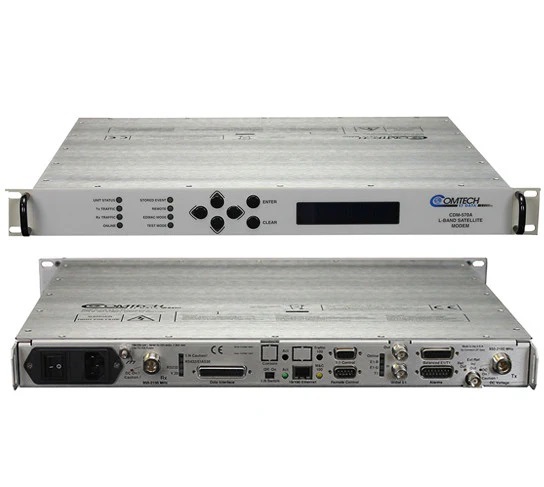

The Comtech EF Data CDM-570AL-IP Satellite Modem is engineered for IP-centric satellite networks, offering a wide range of features to optimize bandwidth usage and ensure robust connectivity. It supports DVB-S2 modulation, which significantly enhances spectral efficiency, and incorporates DoubleTalk® Carrier-in-Carrier® technology to allow for simultaneous transmission and reception on the same frequency. With integrated routing and advanced IP features, such as QoS and VLAN support, this modem provides reliable and high-quality service for mission-critical applications across diverse industries. The CDM-570AL-IP is the perfect solution for users looking to maximize network efficiency while reducing operational costs.
| Feature |
Specification |
| Modulation |
DVB-S2/QPSK, 8PSK, 16-QAM |
| Data Rates |
Up to 9.98 Mbps |
| Symbol Rates |
64 ksps to 45 Msps |
| Forward Error Correction |
LDPC (Low-Density Parity-Check), TPC (Turbo Product Coding) |
| Interfaces |
Ethernet, G.703, HSSI, RS-232, VLAN |
| Operating Frequency |
50 to 180 MHz (IF), 950 to 2150 MHz (L-Band) |
| IP Features |
QoS, VLAN, Routing, Bridging |
| Carrier-in-Carrier® |
DoubleTalk® Carrier-in-Carrier® |
| Network Management |
SNMP, Web-based GUI, Telnet, FTP |
| Dimensions |
48.3 cm x 44.5 cm x 4.4 cm (19 in x 17.5 in x 1.75 in) |
| Weight |
3.63 kg (8 lbs) |
| Power Supply |
90-260 VAC, 50-60 Hz |
| Power Consumption |
< 35W |
| Operating Temperature |
0°C to 50°C (32°F to
|
