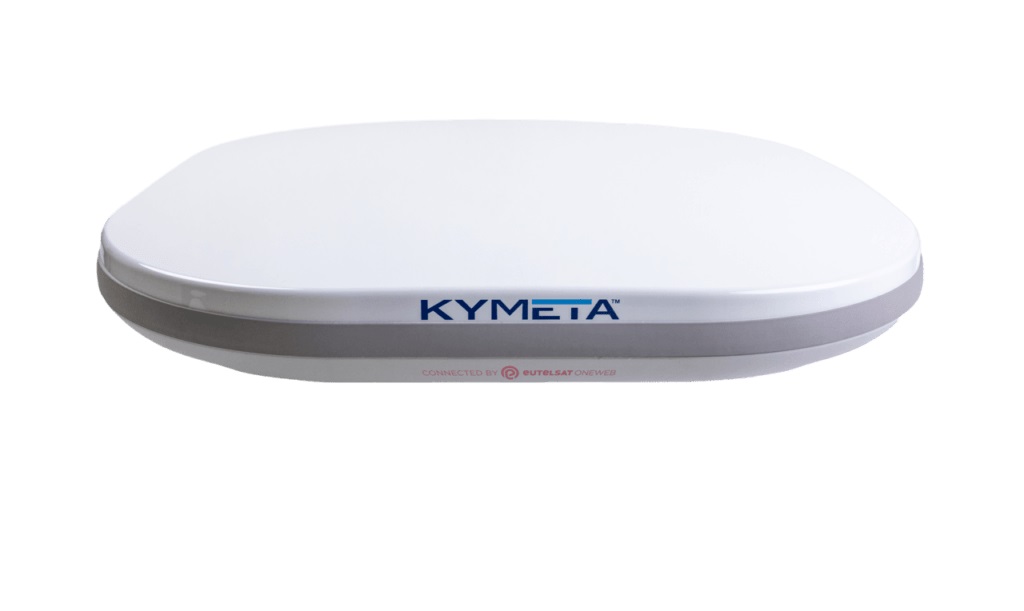

The Kymeta Peregrine U8 is a cutting-edge satellite antenna system designed for seamless communication in challenging environments. Leveraging advanced flat-panel technology, this terminal provides reliable connectivity across both Ku-band and Ka-band frequencies, offering high-speed data and voice services for a range of applications.
The Kymeta Peregrine U8 is a state-of-the-art satellite antenna system engineered to deliver superior connectivity with its innovative flat-panel design. This versatile terminal supports both Ku-band and Ka-band frequencies, ensuring robust performance and flexibility in various operational scenarios. Ideal for maritime, aviation, and remote land applications, the Peregrine U8 offers high-speed data transfer and reliable communication, even in harsh conditions. The antenna's sleek, low-profile design facilitates easy integration and deployment, while its advanced tracking capabilities ensure consistent signal reception. With its reliable performance and compact form factor, the Kymeta Peregrine U8 is well-suited for users who demand high-performance satellite communication in diverse and challenging environments.
Feature | Specification |
---|---|
Antenna Type | Flat-Panel Satellite Antenna |
Frequency Range (Ku-Band) | 14.0 - 14.5 GHz (Tx), 11.7 - 12.2 GHz (Rx) |
Frequency Range (Ka-Band) | 29.5 - 30.0 GHz (Tx), 19.7 - 20.2 GHz (Rx) |
Gain (Ku-Band) | 39.5 dBi (Tx), 37.5 dBi (Rx) |
Gain (Ka-Band) | 40.5 dBi (Tx), 39.0 dBi (Rx) |
Polarization | Circular Polarization |
Tracking Type | Automatic Satellite Tracking |
Mounting Type | Marine-Grade or Aviation Mount |
Weight | Approx. 30 kg (66 lbs) |
Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
Power Consumption | Low Power Consumption |
