KingSat KM-P8E Maritime Antenna

(In Stock)

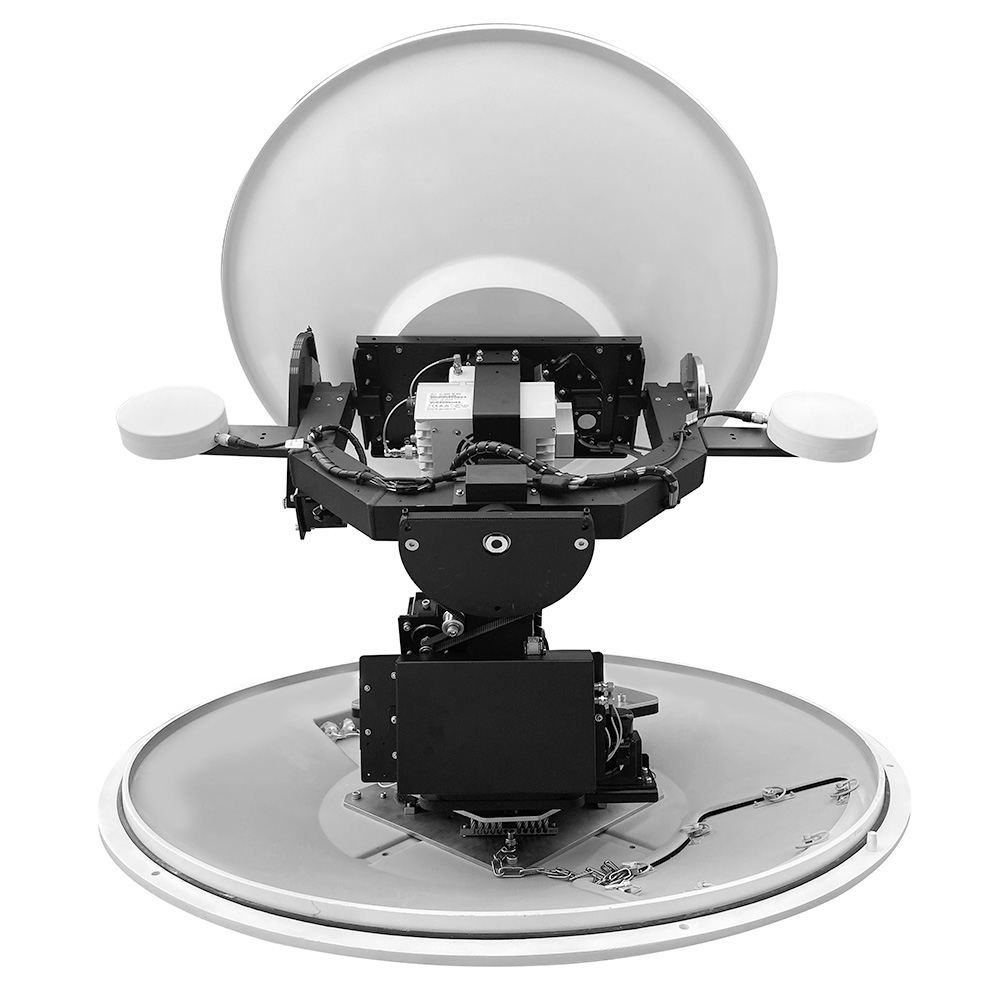

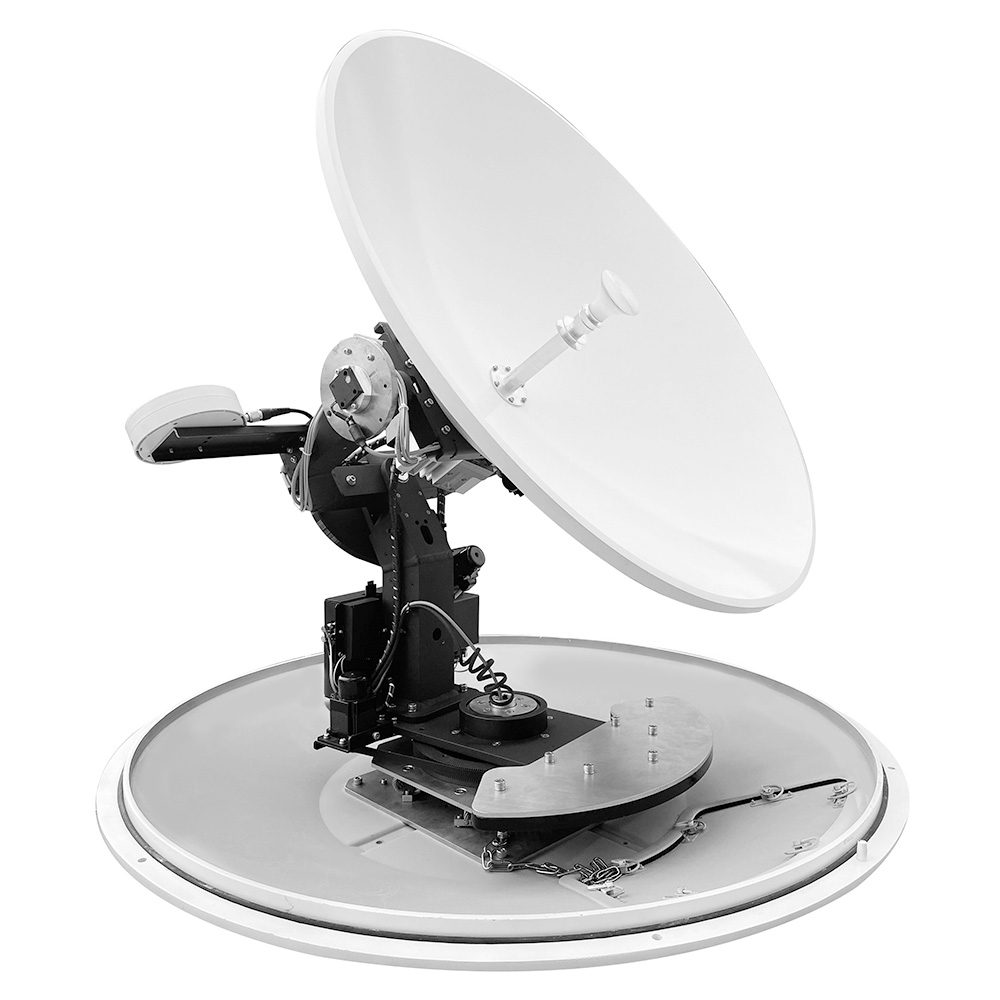

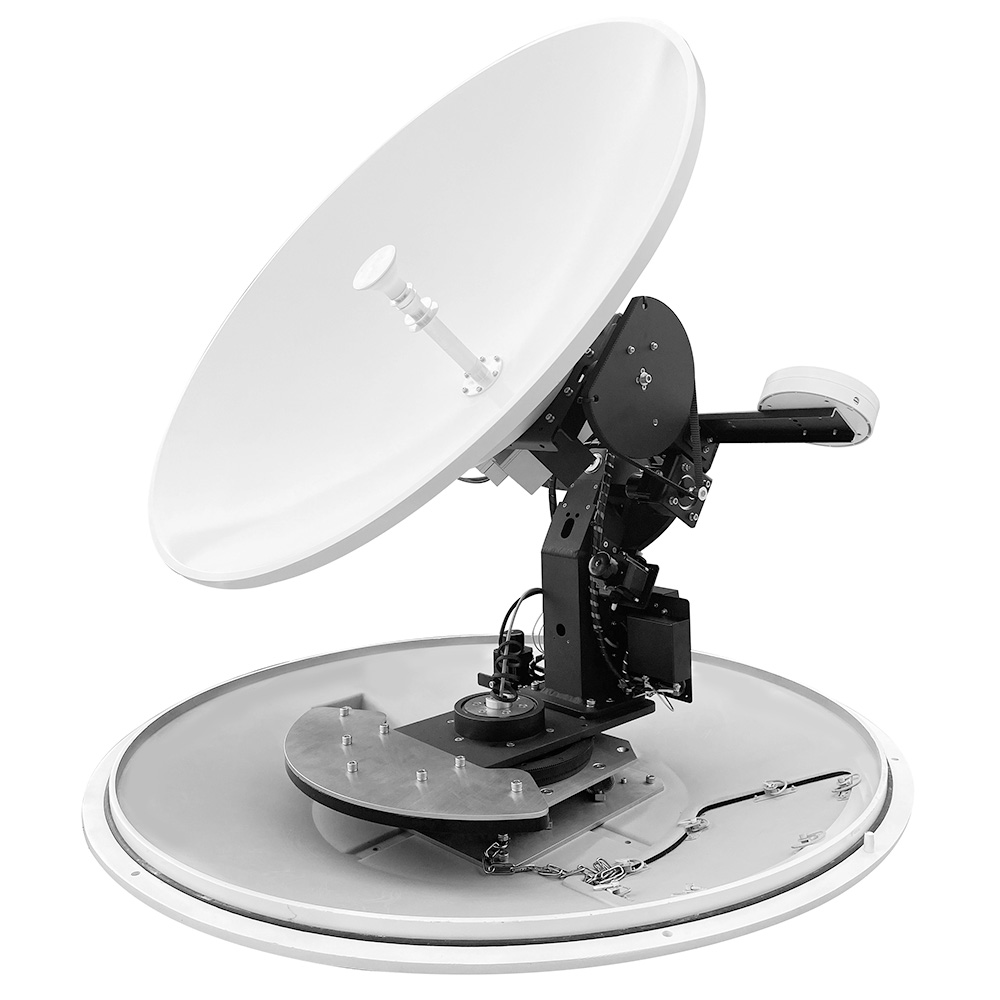

The KingSat KM-P8E antenna is designed for global maritime communication, offering an 85 cm dish diameter and exceptional tracking performance. With advanced 3-axis stabilization and automatic skew adjustment, it ensures reliable and stable internet connectivity even in the harshest maritime environments. The antenna's built-in dual GPS gyro guarantees precise satellite tracking, while its weatherproof design (IP56) provides durability in extreme conditions. It operates within a frequency range of 10.70–12.75 GHz for reception and 13.75–14.5 GHz for transmission, ensuring excellent signal quality with a TX gain of 40.3 dBi.

Offering high-performance tracking with an 85 cm dish, the KingSat KM-P8E antenna delivers robust satellite communication for maritime applications. It features an advanced stabilization system that includes 3-axis stabilization and automatic skew for smooth operation, even when facing obstructions. Built-in gyro technology ensures continuous and precise satellite pointing, while the ASA radome guarantees minimal signal loss. Designed for ease of use, the antenna comes with a web interface for remote monitoring and troubleshooting, making it ideal for vessels requiring dependable internet access on global routes.

Feature Specification
Dish Diameter 85 cm (33.5 inches)
Radome Size 110 x 112 cm (43.3” x 44.1”)
Weight 72.5 kg (160 lbs)
Radome Material ASA (Loss < 0.8 dB)
Stabilization 3-Axis Stabilized, Auto Skew
Azimuth Range 0° to 690°
Elevation Range -15° to 120°
Skew Range Automatic, 0° to 240°
Position Acquisition Built-in Gyro
Operating Frequency RX: 10.70-12.75 GHz, TX: 13.75-14.5 GHz
RX Gain 39.5 dBi @ 12.5 GHz
TX Gain 40.3 dBi @ 14.25 GHz
Antenna Control Unit Dimensions: 48.2 x 30 x 4.5 cm, Weight: 3 kg
Power Requirement 100-230VAC 50-60Hz
Operating Temperature -25°C to 55°C
Storage Temperature -30°C to 85°C
Humidity Up to 100% @ 40°C
Water Proof IP56
