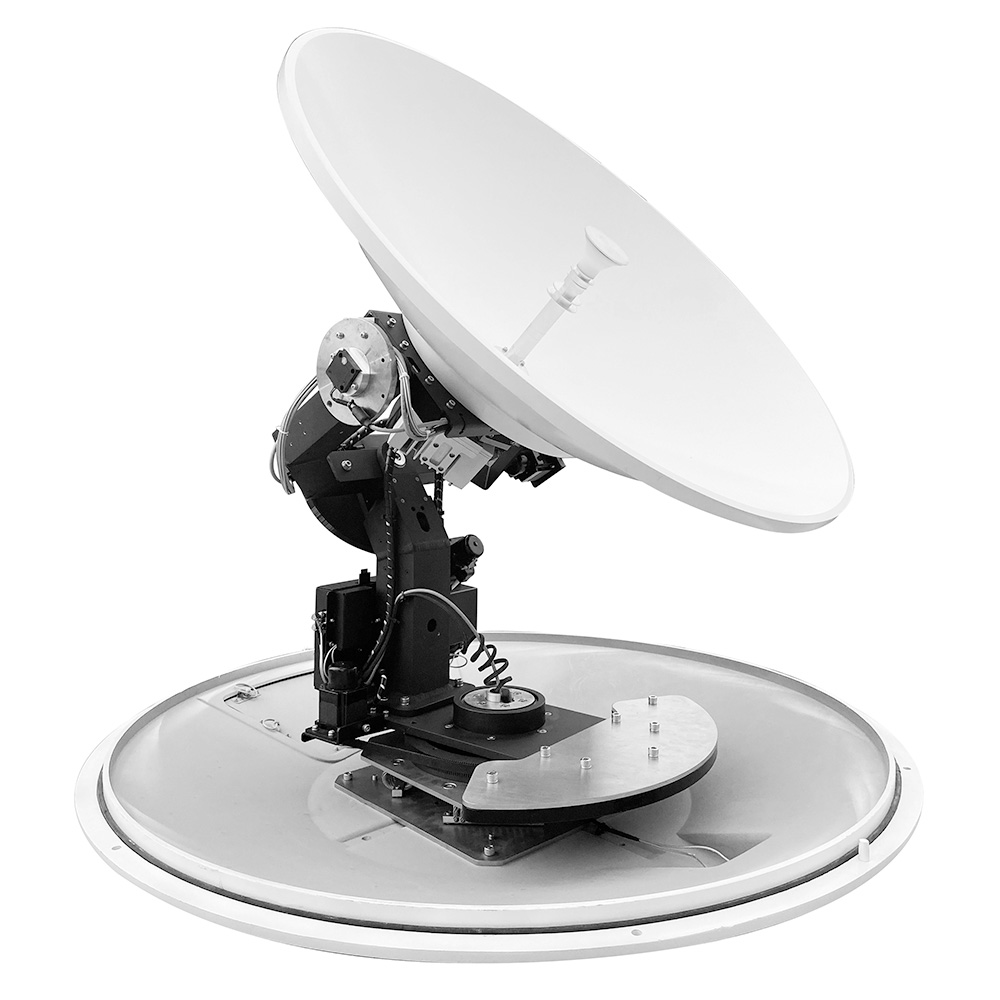

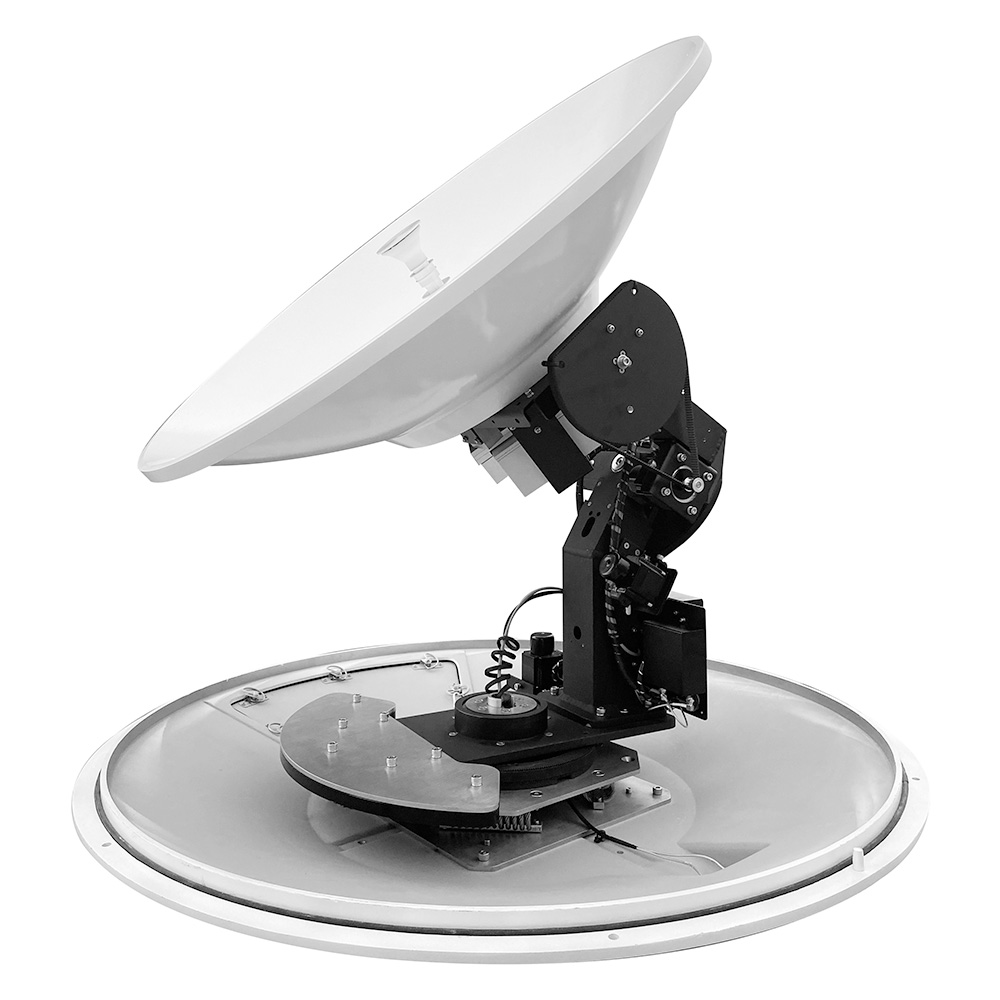

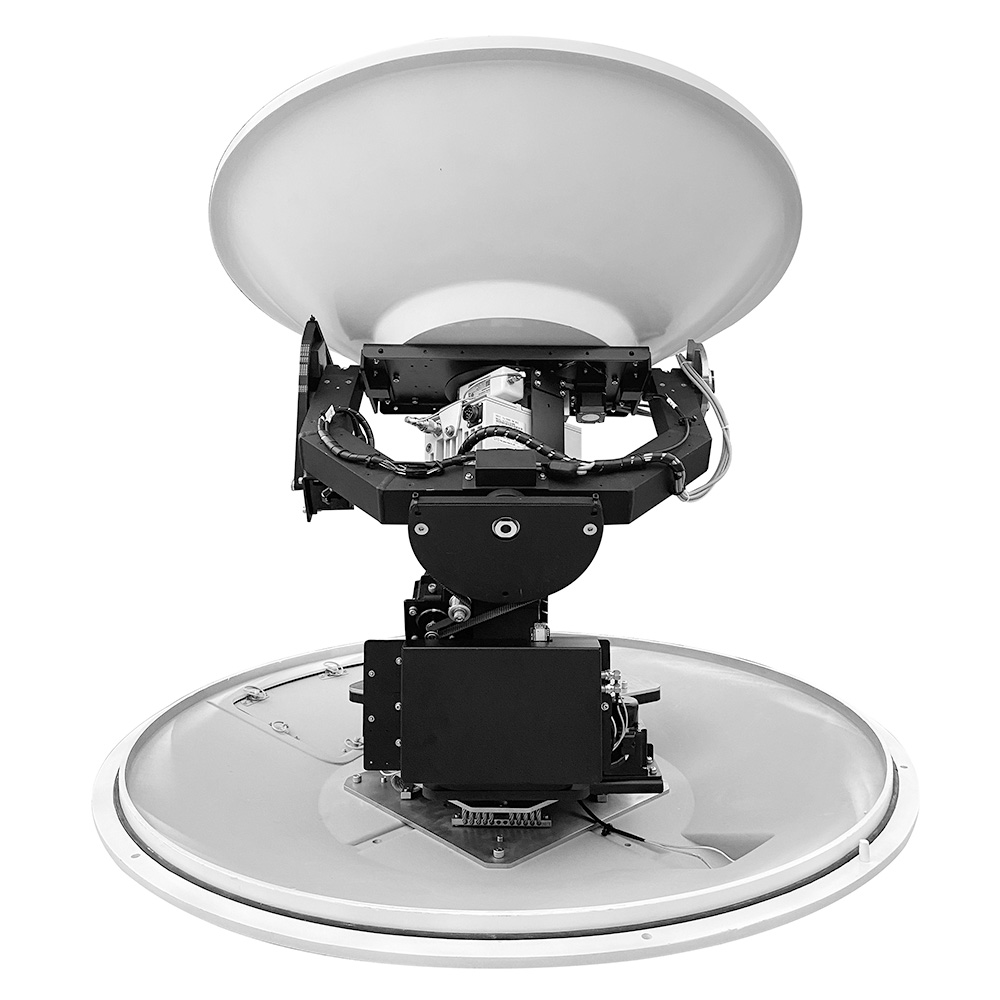

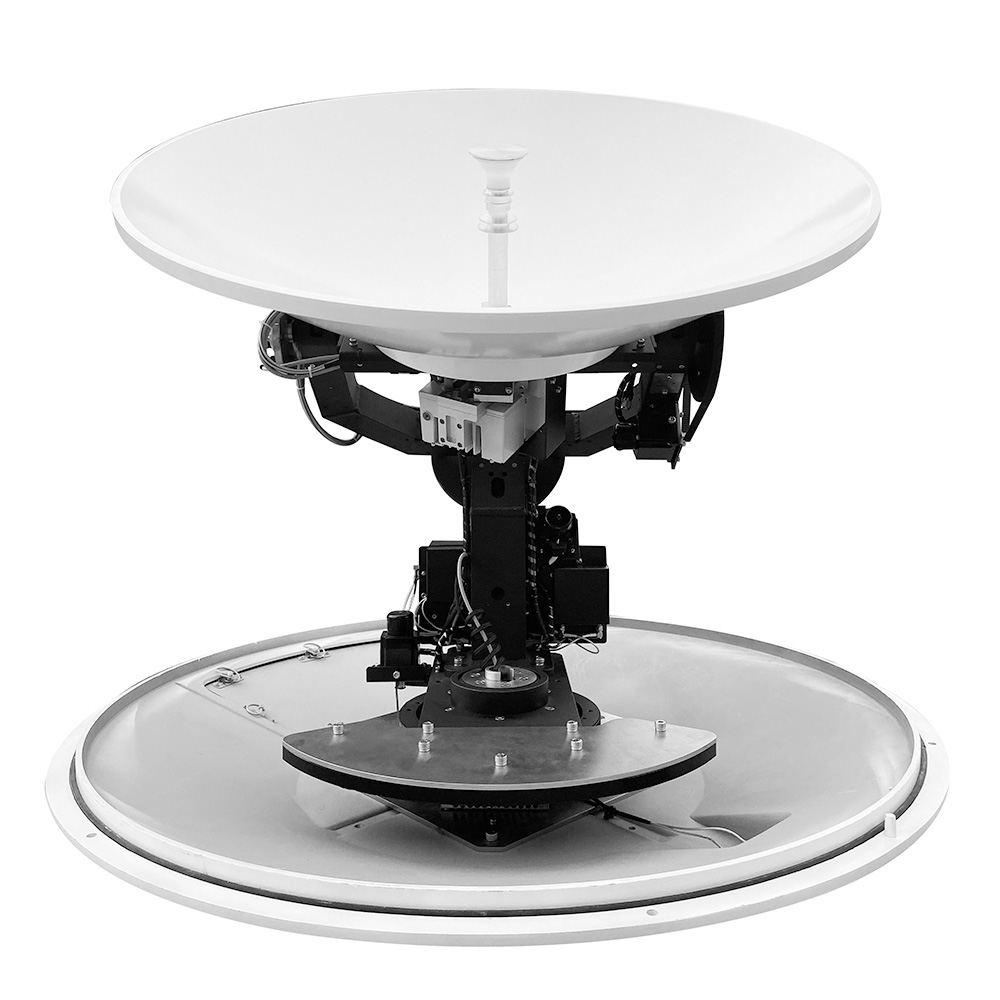

KingSat KM-P8 Maritime VSAT Antenna

(In Stock)

Designed for maritime environments, the KingSat KM-P8 antenna delivers exceptional satellite communication performance. Its advanced features like automatic skew adjustment, unlimited azimuth tracking, and dual GPS ensure uninterrupted service, even in rough seas. With an 85 cm dish and robust build, it’s engineered for long-lasting use at sea.

The KingSat KM-P8 antenna offers premium maritime satellite communication with high reliability. Equipped with 3-axis stabilization and 4-axis tracking, this antenna ensures continuous and stable satellite connection even in challenging marine conditions. It supports both Ku-band and offers impressive gain with a robust IP56 waterproof rating, making it ideal for vessels of all sizes.

Feature Specification
Dish Diameter 85 cm (33.5 inches)
Radome Material Honeycomb FRP
Antenna Stabilization 3-Axis Stabilized + Auto Skew
Tracking 4-Axis Tracking, Azimuth Unlimited
Cross Level Range ± 35°
Elevation Range -15° to 120°
Skew Range Automatic 0° to 240°
Rx Frequency 10.70 ~ 12.75 GHz
Tx Frequency 13.75 ~ 14.5 GHz
Rx Gain 39.5 dBi @ 12.5 GHz
Tx Gain 40.3 dBi @ 14.25 GHz
Weight 73.5 kg (162 lbs)
Operating Temperature -25° ~ 55°C
Storage Temperature -30° ~ 85°C
Waterproof Rating IP56
Power Supply 100-230 VAC, 50-60 Hz
