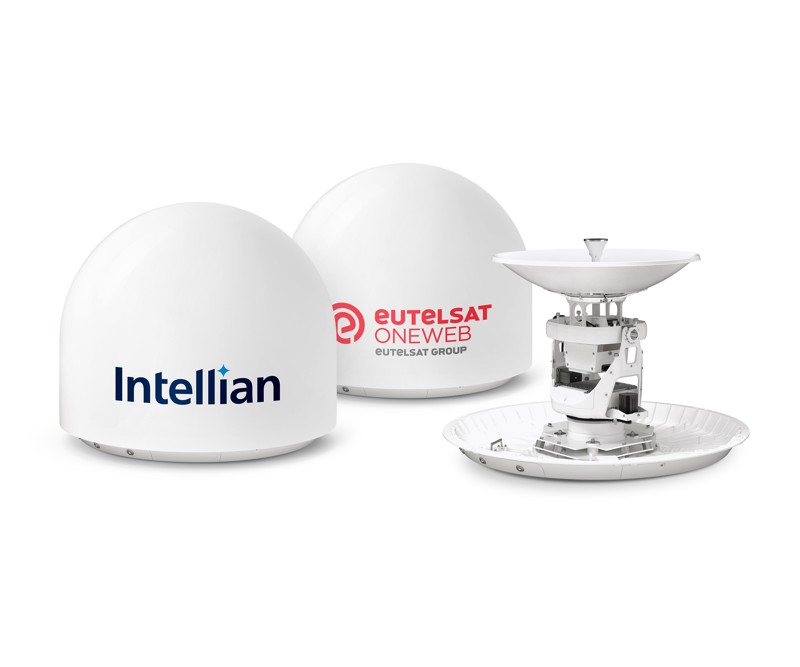

The Intellian OW70M Dual Parabolic User Terminal is engineered to provide exceptional satellite connectivity for maritime environments, specifically tailored for integration with the OneWeb satellite network. This dual parabolic antenna system offers superior gain and coverage, ensuring reliable high-speed internet and voice services even in the most demanding conditions. The OW70M’s design features advanced tracking capabilities and enhanced signal reception, making it ideal for commercial and leisure vessels requiring consistent connectivity. With its robust construction, the OW70M can withstand harsh maritime conditions while delivering uninterrupted service. Its dual parabolic configuration enhances signal reliability and performance, making it a dependable choice for global maritime communications.
| Feature | Specification |
| Antenna Type | Dual Parabolic Satellite Antenna |
| Frequency Range (Ku-Band) | 14.0 - 14.5 GHz (Tx), 11.7 - 12.2 GHz (Rx) |
| Frequency Range (Ka-Band) | 29.5 - 30.0 GHz (Tx), 19.7 - 20.2 GHz (Rx) |
| Antenna Diameter | 70 cm (27.6 inches) |
| Gain (Ku-Band) | 39.0 dBi (Tx), 37.0 dBi (Rx) |
| Gain (Ka-Band) | 41.0 dBi (Tx), 39.5 dBi (Rx) |
| Polarization | Circular Polarization |
| Tracking Type | Automatic Satellite Tracking |
| Mounting Type | Marine-Grade Mount |
| Weight | Approx. 75 kg (165 lbs) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | Low Power Consumption |
