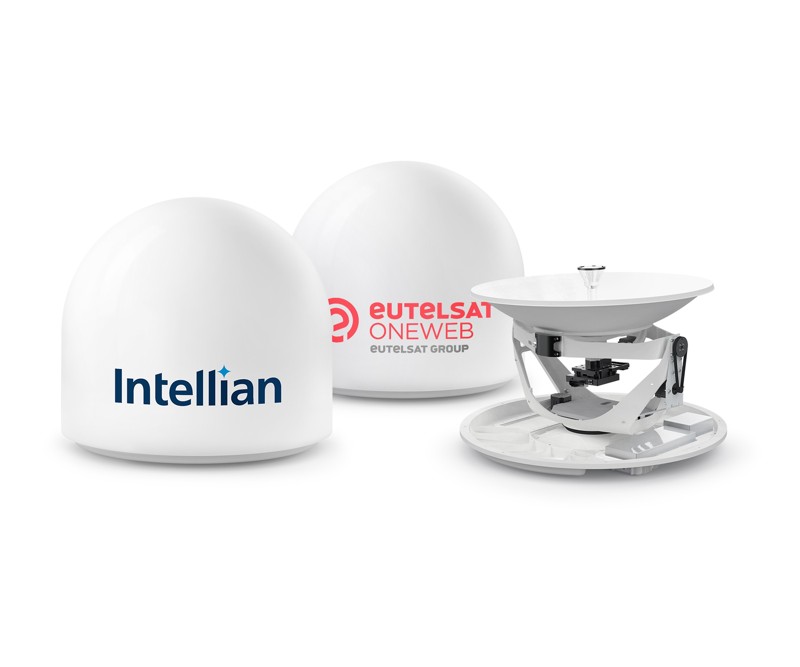

The Intellian OW70L-Dac Dual Parabolic Land User Terminal is engineered to deliver robust satellite communication solutions for land-based applications. Designed for integration with the OneWeb satellite network, the OW70L-Dac ensures consistent, high-speed data and voice connectivity, making it an excellent choice for critical applications requiring reliable internet access. Its dual parabolic antenna design enhances signal reception and stability, providing superior performance in various environmental conditions. The OW70L-Dac features advanced tracking technology for precise satellite alignment and optimized performance. Its durable construction and high-performance capabilities make it suitable for fixed installations in both urban and remote locations, ensuring reliable connectivity where it is most needed.
| Feature | Specification |
| Antenna Type | Dual Parabolic Satellite Antenna |
| Frequency Range (Ku-Band) | 14.0 - 14.5 GHz (Tx), 11.7 - 12.2 GHz (Rx) |
| Frequency Range (Ka-Band) | 29.5 - 30.0 GHz (Tx), 19.7 - 20.2 GHz (Rx) |
| Antenna Diameter | 70 cm (27.6 inches) |
| Gain (Ku-Band) | 38.0 dBi (Tx), 36.5 dBi (Rx) |
| Gain (Ka-Band) | 40.5 dBi (Tx), 39.0 dBi (Rx) |
| Polarization | Circular Polarization |
| Tracking Type | Automatic Satellite Tracking |
| Mounting Type | Fixed Land Mount |
| Weight | Approx. 60 kg (132 lbs) |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Power Consumption | Low Power Consumption |
