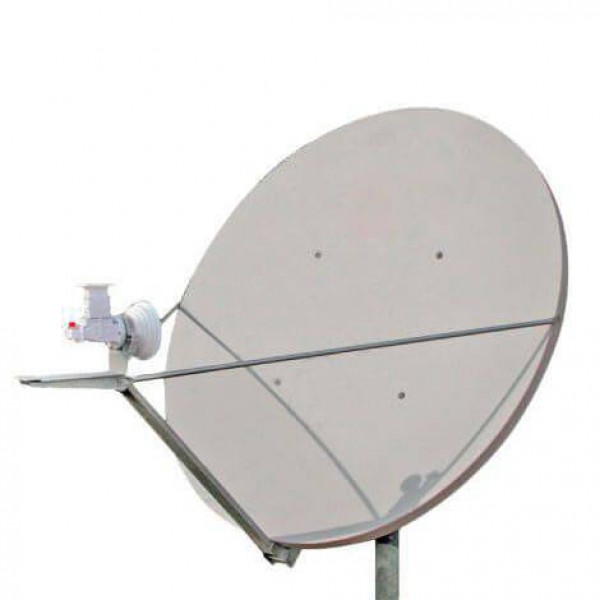

Skyware Global Type 243 Class III Linear Cross Pol Ku-Band TxRx Antenna

(In Stock)

The Skyware Global Type 243 Class III Linear Cross Pol Ku-Band TxRx Antenna is engineered for superior performance in Ku-Band satellite communications. With a 2.4-meter diameter and Class III linear cross-polarization, it offers exceptional gain and reliability for both transmission and reception.

The Skyware Global Type 243 Class III Linear Cross Pol Ku-Band TxRx Antenna is designed to deliver high-performance and reliability for Ku-Band satellite communications. This 2.4-meter antenna features a Class III linear cross-polarized design, providing enhanced signal strength and minimal interference. Ideal for demanding applications such as broadcasting, telecommunications, and data services, the Type 243 ensures excellent gain and precision in signal transmission and reception. Its robust construction and advanced design make it suitable for various environments, offering high efficiency and durability in both operational and extreme conditions.

Feature Specification
Antenna Size 2.4 meters
Frequency Range (Tx) 14.00 - 14.50 GHz
Frequency Range (Rx) 11.70 - 12.20 GHz
Gain (Tx) 40.5 dBi @ 14.25 GHz
Gain (Rx) 39.0 dBi @ 12.00 GHz
Cross-Pol Isolation 35 dB (on-axis)
VSWR 1.4:1
Reflector Material Precision-formed aluminum
Mount Type Elevation-over-azimuth
Wind Loading Operational: 60 mph, Survival: 125 mph
Polarization Linear Cross-Polarized (Tx and Rx)
Operating Temperature -40°C to +60°C
Weight 85 kg (187 lbs)
