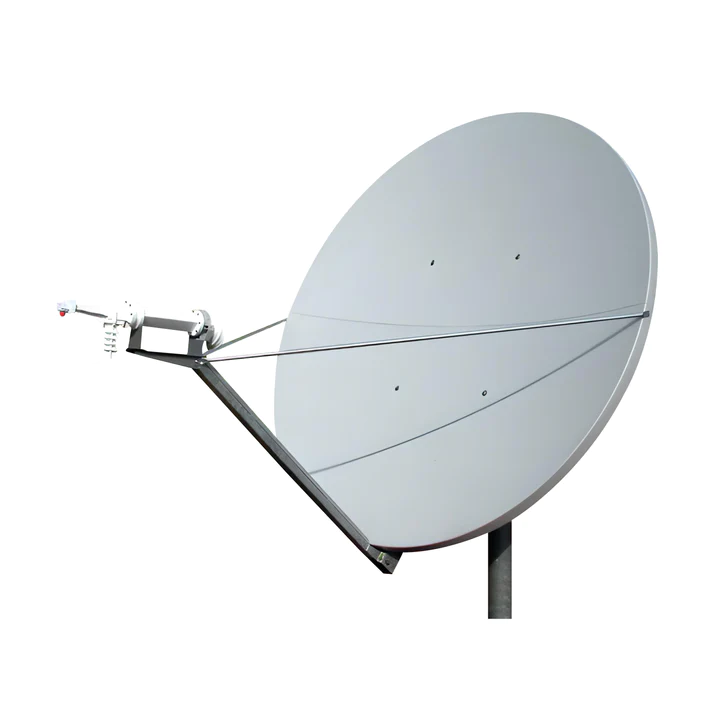

The Skyware Global Type 243 2.4M C-Band TxRx Antenna is engineered for optimal satellite communications with superior performance. Featuring a 2.4-meter diameter and Class III circular polarization, this C-Band antenna ensures high gain and reliable signal quality for both transmission and reception.
The Skyware Global Type 243 2.4M C-Band TxRx Antenna is designed for premium satellite connectivity with exceptional performance in C-Band communications. With a 2.4-meter diameter and Class III circular polarization, this antenna provides outstanding gain and reliability for critical satellite data transmission and reception. Engineered to deliver high-performance signal quality, the Type 243 is ideal for applications requiring robust and dependable satellite communication. Its durable construction ensures consistent performance in various environmental conditions, making it a top choice for reliable satellite communications.
Feature | Specification |
---|---|
Antenna Size | 2.4 meters |
Frequency Range (Tx) | 5.850 - 6.425 GHz |
Frequency Range (Rx) | 3.625 - 4.200 GHz |
Gain (Tx) | 39.5 dBi @ 6.15 GHz |
Gain (Rx) | 38.0 dBi @ 3.85 GHz |
Cross-Pol Isolation | 30 dB (on-axis) |
VSWR | 1.5:1 |
Reflector Material | Precision-formed aluminum |
Mount Type | Elevation-over-azimuth |
Wind Loading | Operational: 60 mph, Survival: 125 mph |
Polarization | Circular Polarized (Tx and Rx) |
Operating Temperature | -40°C to +60°C |
Weight | 85 kg (187 lbs) |
