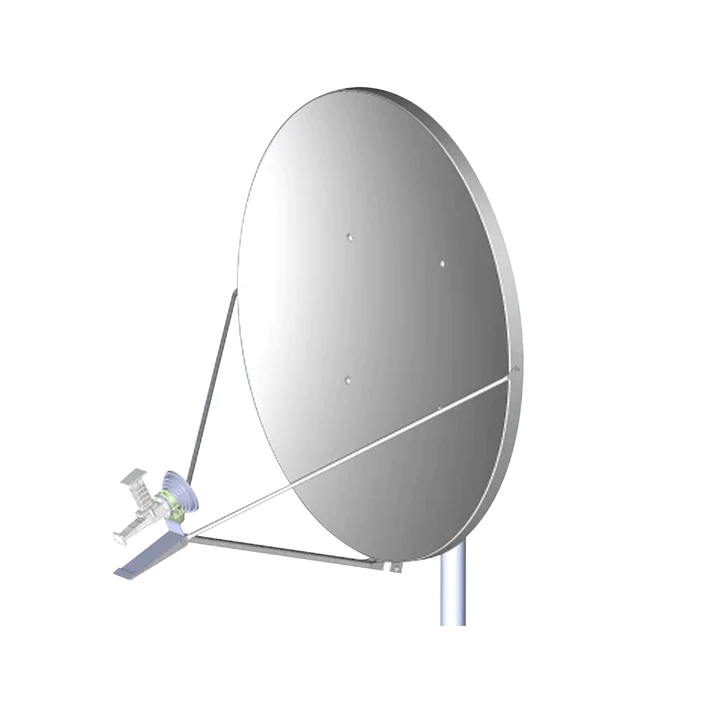

The Skyware Global Type 183 1.8M C-Band TxRx Class III Antenna is a high-performance solution designed for C-Band satellite communications. With its 1.8-meter diameter, it provides excellent gain and reliability for both transmission and reception, ensuring robust connectivity in various environments.
The Skyware Global Type 183 1.8M C-Band TxRx Class III Antenna delivers outstanding performance for C-Band satellite communications, making it ideal for both commercial and industrial applications. This 1.8-meter antenna features a precision-engineered reflector and advanced Class III design to ensure high gain and reliable signal transmission and reception. Built with a durable aluminum reflector and an adjustable mount, the Type 183 antenna offers excellent performance in diverse conditions, including challenging weather. Its design focuses on high efficiency and minimal signal loss, providing reliable connectivity for telecommunications, broadcasting, and data services.
Feature | Specification |
---|---|
Antenna Size | 1.8 meters |
Frequency Range (Tx) | 5.850 - 6.425 GHz |
Frequency Range (Rx) | 3.625 - 4.200 GHz |
Gain (Tx) | 38.5 dBi @ 6.15 GHz |
Gain (Rx) | 37.0 dBi @ 4.00 GHz |
Cross-Pol Isolation | 30 dB (on-axis) |
VSWR | 1.5:1 |
Reflector Material | Precision-formed aluminum |
Mount Type | Elevation-over-azimuth |
Wind Loading | Operational: 50 mph, Survival: 125 mph |
Polarization | Linear (Tx and Rx) |
Operating Temperature | -40°C to +60°C |
Weight | 55 kg (121 lbs) |
