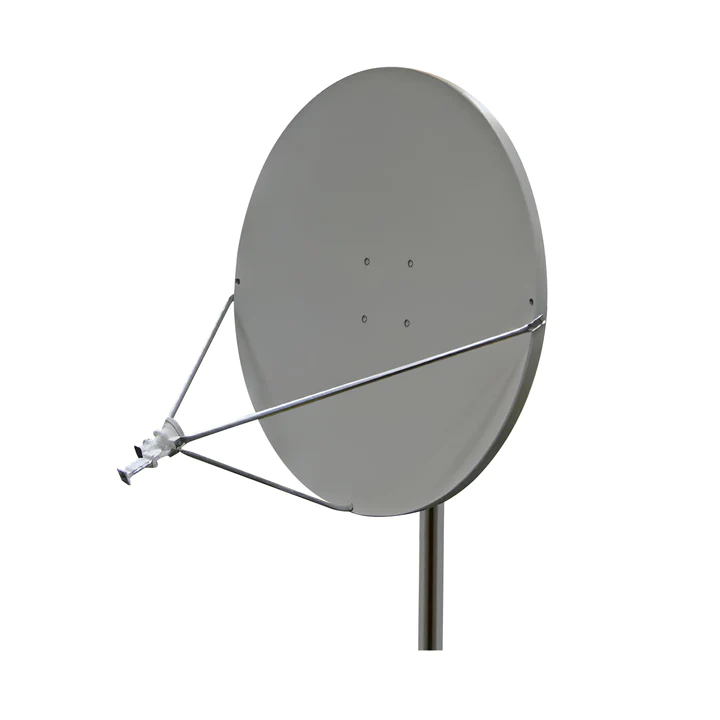

The Skyware Global Type 122 1.2M Ku-Band TxRx Class I Antenna System is a high-performance satellite dish designed for reliable two-way communication in Ku-Band frequencies. It provides optimal gain and precision for broadband, enterprise, and VSAT applications.
The Skyware Global Type 122 1.2M Ku-Band TxRx Class I Antenna System is engineered for superior satellite communication in the Ku-Band spectrum. With a 1.2-meter reflector, this antenna system delivers high gain and accurate pointing, making it ideal for broadband internet, enterprise networks, and VSAT applications. The system supports both transmit and receive operations, ensuring reliable connectivity for demanding environments. Built to meet rigorous standards, it is suitable for commercial, government, and critical communication needs. The robust construction ensures durability in diverse weather conditions, and its compact design allows for easy installation and setup in a wide range of locations.
Feature | Specification |
---|---|
Antenna Size | 1.2 meters |
Frequency Range (Tx) | 13.75 - 14.50 GHz |
Frequency Range (Rx) | 10.70 - 12.75 GHz |
Gain (Tx) | 42.1 dBi @ 14.25 GHz |
Gain (Rx) | 40.7 dBi @ 11.95 GHz |
Cross-Pol Isolation | 30 dB (on-axis) |
VSWR | 1.3:1 |
Reflector Material | Precision-formed aluminum |
Mount Type | Elevation-over-azimuth |
Wind Loading | Operational: 45 mph, Survival: 125 mph |
Operating Temperature | -40°C to +60°C |
Weight | 35 kg (77 lbs) |
Polarization | Linear (Tx and Rx) |
