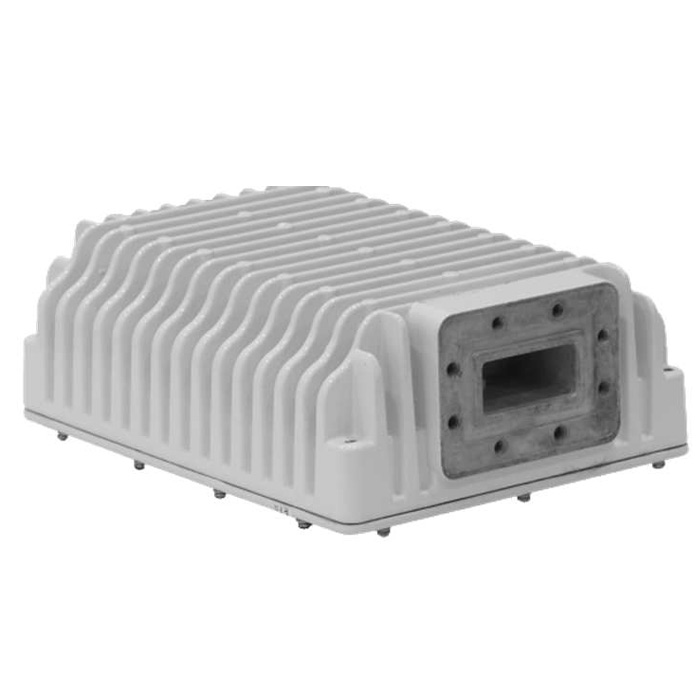

Amplus AM-9335 Series 5W Palapa C-Band BUC

(In Stock)

The Amplus AM-9335 Series 5W Palapa C-Band BUC is a high-performance Block Upconverter designed for C-Band satellite communication, offering robust power output and reliable signal transmission.

The Amplus AM-9335 Series 5W Palapa C-Band BUC is engineered to deliver exceptional performance in satellite communications, providing a powerful and reliable signal transmission for C-Band frequencies. With its 5W power output, this Block Upconverter ensures strong and clear communication in demanding environments. The AM-9335 series is known for its durability, high efficiency, and precise frequency conversion, making it ideal for use in various applications, including broadcasting and remote communications. Designed for compatibility with Palapa satellites, it guarantees seamless integration and optimal performance for critical satellite links.

Feature Specification
Frequency Range (Input) 5.850 - 6.425 GHz
Frequency Range (Output) 3.625 - 4.200 GHz
Output Power 5W (37 dBm)
Gain 60 dB (typical)
Noise Figure 15 dB (typical)
Connector Type F-Type
Power Supply 12V DC
Dimensions Approx. 200 mm x 200 mm x 100 mm
Weight Approx. 2 kg (4.4 lbs)
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Durability Weatherproof, designed for harsh environments
