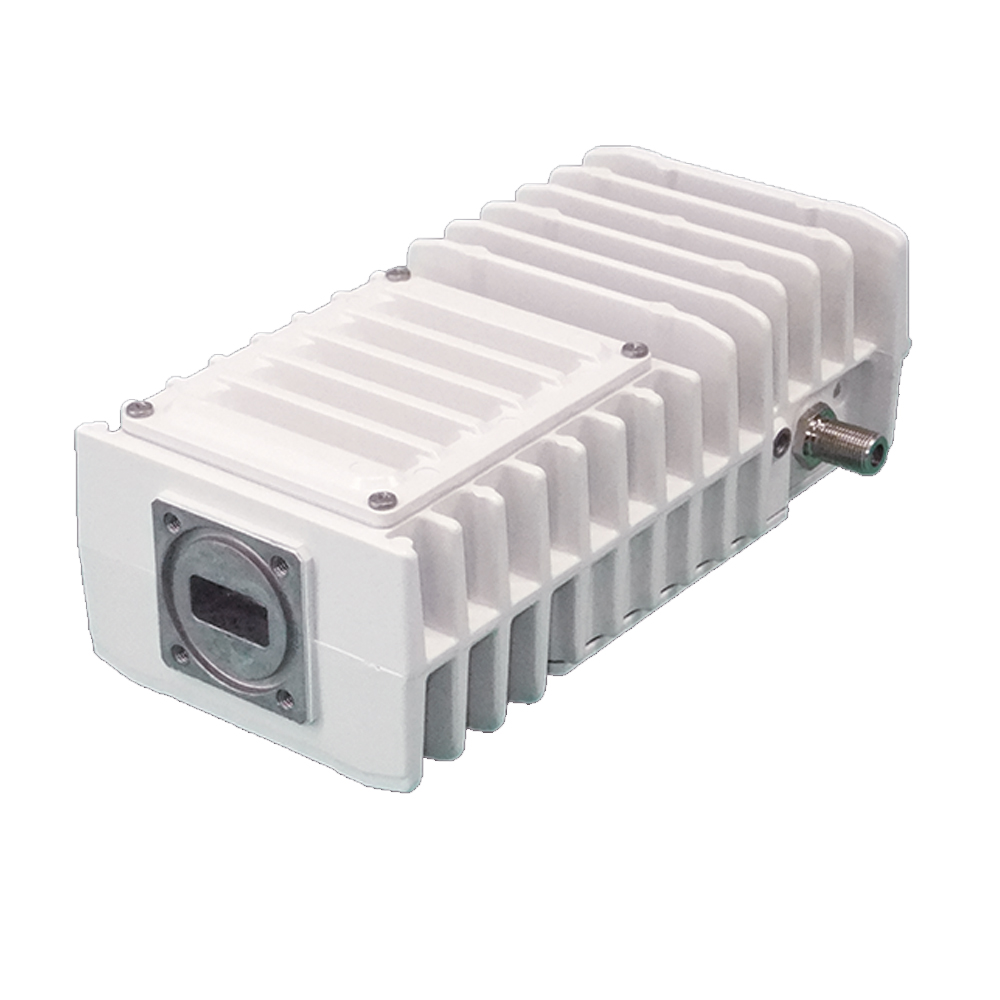

The NJRC NJT8306UF 6W Universal BUC Ku-Band is a high-performance 6W Block Upconverter offering reliable Ku-Band satellite communications with enhanced power, designed for both fixed and mobile applications.
The NJRC NJT8306UF 6W Universal BUC Ku-Band provides 6W (37.8 dBm) of output power, ensuring robust and consistent signal transmission across the Ku-Band spectrum. Its compact and lightweight design is ideal for use in satellite communication systems requiring mobility or fixed installations. This BUC is engineered with high-efficiency RF technology to minimize power consumption while maintaining superior signal quality. With weatherproof housing and a wide operating temperature range, the NJT8306UF is built to withstand challenging environmental conditions, making it an ideal solution for a variety of satellite communication needs.
Feature | Specification |
---|---|
Frequency Range (Input) | 950 - 1450 MHz |
Frequency Range (Output) | 14.0 - 14.5 GHz |
Output Power | 6W (37.8 dBm) |
Gain | 55 dB (typical) |
Noise Figure | 15 dB (typical) |
Connector Type | F-Type, 75 Ohms |
Power Supply | DC 15V - 24V |
Dimensions | 127 mm x 84 mm x 44 mm |
Weight | Approx. 900 g (1.98 lbs) |
Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
Durability | Weatherproof design, IP65 rating |
